1464, FIS/HP Series High Pressure Sight Flow Indicators
Series FIS/HP sight flow indicators, provided with NPT threaded ends per ANSI B2.1, offers inline on-the-spot viewing of a pipeline’s contents. Series FIS/HP may be configured with flapper, drip tube or rotary flow indicators. Options include socket weld and silver brazing connections and double window assemblies. Rating: HP3-300 PSIG (20.7 Barg), HP6-600 PSIG (41.4 Barg). Full ANSI pressure Class 300 and 600 rating available.
Specifications
| Size | 1 1/4 in |
|---|---|

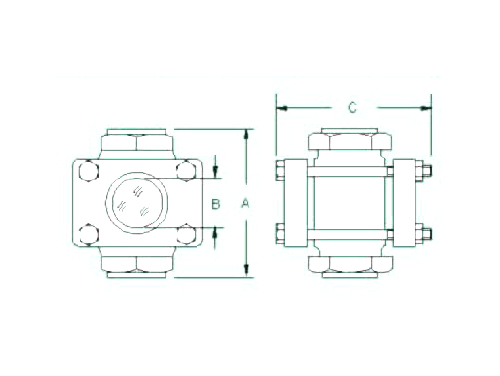

| Dimension A | 5 1/2 in |
| Dimension B | 1 1/2 in |
| Approximate Weight | 12 lb |
| Rated Pressure for HP 3 | 300 psig |
| Rated Pressure for HP 6 | 600 psig |
| Industry Standards/Certifications | Full ANSI Pressure Class 300 |
Standard Materials of Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Lens Retainer Material | Carbon Steel |
| Fastener Material | Carbon Steel |
| Lens Material | Borosilicate Glass |
| Gasket Material | Neoprene |
For Dimension C: Consult factory.
Other materials available upon request. Consult factory for details.
