FFBX, FFBX Series Fiberlux Intrinsically Safe Lightport with Light
Fiberlux Series of Light/Sight glasses and Lightports incorporates fiber optic technology to provide intrinsically safe illumination in hazardous classified locations. With the light source positioned outside the hazardous area, light is piped to the sight glass through a Factory Mutual Approved intrinsically safe fiber optic cable.

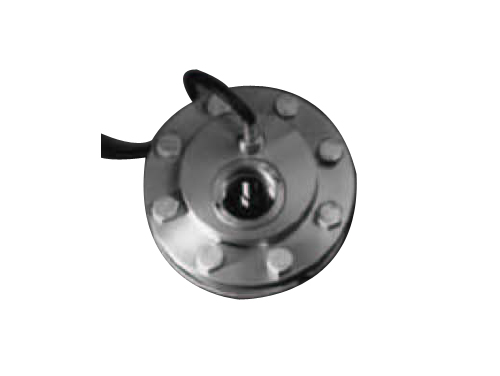

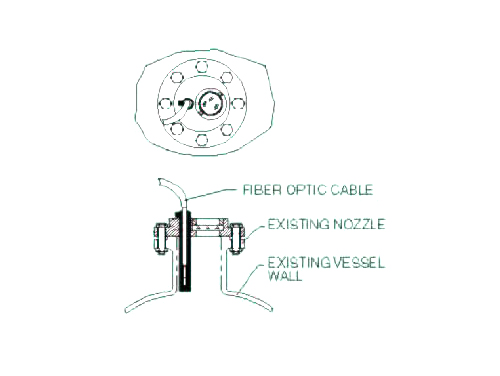

Series FFBX offers viewing and illumination in a single unit. Designed to be mounted to standard flange-type nozzles, the unit is particularly suited for glass lined vessels. The illumination takes place at or below the nozzle neck to prevent blinding reflections off the nozzle’s glass lining.
Specifications
| Enclosure xx | NEMA 12 |
|---|---|
| Approval | Factory Mutual System |
The Fiberlux illumination system is offered in three basic configurations; as an illumination port where viewing is through a second sight glass, an off-set light/sight glass especially suited for glass lined nozzles and as an illuminator for standard sight glasses. The light source for each configuration is available housed in a NEMA 4, 4X, 7 or 12 enclosure.
