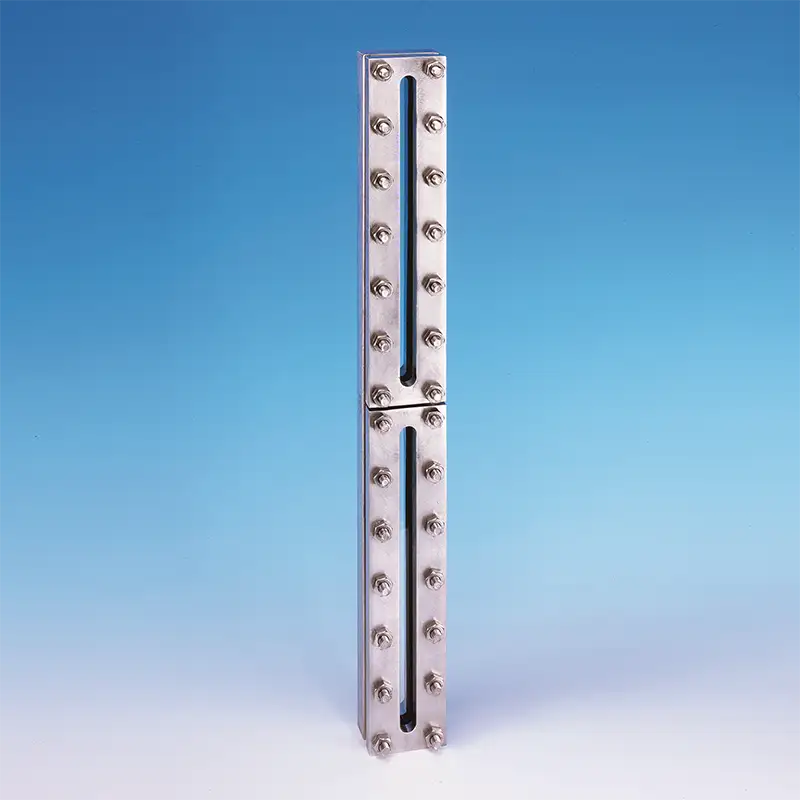

RS 1×6, RS Series Rectangular Sight Glasses
The Series RS sight glass is entirely manufactured from rolled bar stock to withstand the severe service requirements found in process vessels and reactors. These sight glasses can be supplied in carbon steel or Type 304, 304L, 316, and 316L stainless steel with plain or reflex glass.
Standard lengths are listed with special sizes available. These sight glasses are recommended for pressures and temperatures up to 150 PSIG (14.3 Barg) and 500 ºF (260 ºC).

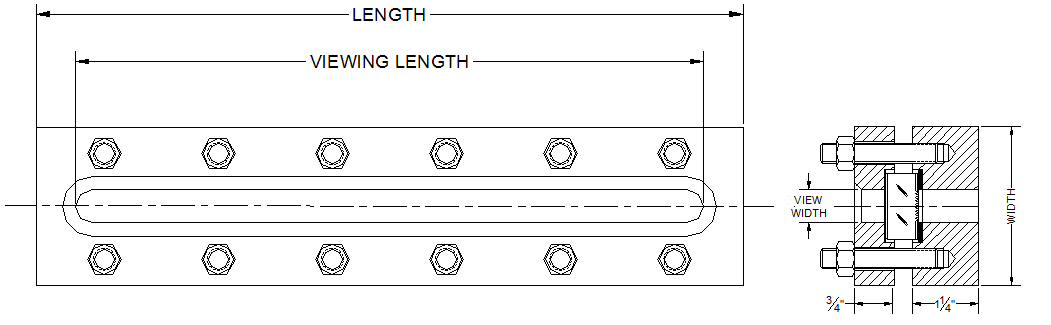

Specifications
| Size | 1 x 6 in |
|---|---|
| Length | 10 5/8 in |
| Width | 3 in |
| Viewing Length | 9 1/8 in |
| Viewing Width | 5/8 in |
| Approximate Weight | 23 lb |
| Material1 | 304 Stainless Steel |
| Rated Pressure at 500 °F (260 °C) Temperature | 150 psig |
| Shape | Rectangular |
